Under Cabinet Led Lighting Channel Manufacturer Company China
Under-cabinet LED lighting channels (also called LED profiles or extrusions) are used to create a clean, great look for LED strip lighting in kitchens, display cases, or workspaces.
They help diffuse light evenly, protect the LED strips, and provide a sleek installation.
– Material:
– Aluminum (best for heat dissipation, durable).
– Diffuser Type:
– Clear (brightest, but may show individual LEDs).
– Frosted/Opal (softens light, reduces glare).
– Milky (high diffusion, smooth light output).
– Size/Profile:
– Match the channel width to your LED strip (e.g., 5mm–20mm wide).
– End Caps & Connectors
– Some channels come with covers for a finished look.
Installation Tips
1. Measure & Plan – Ensure the channel fits under the cabinet and covers the desired area.
2. Pre-Wire – Decide if wiring will be hidden or routed through cabinets.
3. Mounting – Use screws for a secure fit (adhesive may fail over time).
4. Diffuser Attachment – Snap-on or slide-in diffusers should be easy to install.
Best LED Strips to Use
– High CRI (90+) for accurate color rendering (important in kitchens).
– Dimmable (if using with a dimmer switch).
– 12V or 24V (24V is better for longer runs to avoid voltage drop).
XLEDProfile factory is professional to manufacture led aluminum channels to customize for different shape,size and length request.

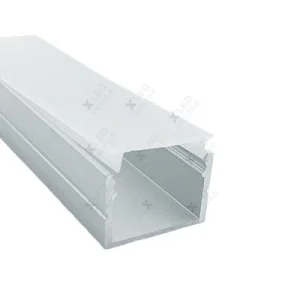

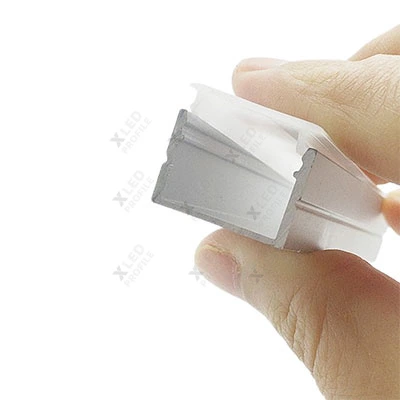

Item No.: | XL-1913 |

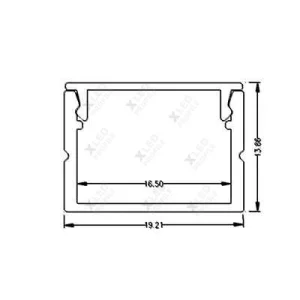

Dimension: | 19*13mm |
Max Led Strip Width | 16mm |
Power: | <35W/M |
Length: | 1m,2m,3m in stock, Max 5m |
Aluminum Profile: | 6063-T5 |
Diffuser: | PC/PMMA Cover (Milky, Transparent,Opal) |
Finish Treatment | Aluminum Anodized (5 times) |
Installation | Surface Mounting+Pendant |
Package | 2pcs/PP Bag,20bag/carton |
Delivery Time | 5-7 days |
Accessories: | End Cap,PC/matel clips |
Stock Color: | Siver anodized |
Customzied color | Powder coated white/black or other colors |
